| Basic Electric Engineering Lab |
|---|
| 1. Verification of Kirchhoff’s laws. |
| 2. Measurement of power and power factor in a single phase ac series inductive circuit and study improvement of power factor using capacitor. |
| 3. Study of phenomenon of resonance in RLC series circuit and obtain resonant frequency. |
| 4. Connection and measurement of power consumption of a fluorescent lamp (tube light). |
| 5. Measurement of power in 3- phase circuit by two-wattmeter method and determination of its power factor for star as well as delta connected load. |
| 6. Determination of parameters of ac single phase series RLC circuit |
| 7. Determination of (i) Voltage ratio (ii) polarity and (iii) efficiency by load test of a single phase Transformer 8. Determination of efficiency of a dc shunt motor by load test. |
| 8. To study running and speed reversal of a three phase induction motor and record speed in both directions. |
| 9. Demonstration of cut-out sections of machines: dc machine, three phase induction machine, single-phase induction machine and synchronous machine. |
| ELECTRICAL MEASUREMENTS AND INSTRUMENTATION |
|---|
| 1. Calibration of AC voltmeter and AC ammeter. |
| 2. Measurement of inductance using Maxwell’s Bridge. |
| 3. Measurement of capacitance using Schering Bridge. |
| 4. Measurement of low resistance using Kelvin’s Double Bridge. |
| 5. Measurement of Power using CT and PT. |
| 6. Measuring displacement using LVDT. |
| 7. Measuring temperature using thermocouple. |
| 8. Measuring pressure using piezoelectric pick up. |
| 9. Measurement of speed of DC motor by photoelectric pick up |
| 10. Speed measurement using Hall Effect sensor. |
| 11. PC based data logging of temperature sensor using LabVIEW/ MATLAB. |
| 12. Signal conditioning of analog signal using LabVIEW/ MATLAB |
| Network Analysis and Synthesis |
|---|
| 1. Verification of Maximum power transfer theorem. |
| 2. Verification of Tallegen's theorem. |
| 3. Study of phenomenon of resonance in RLC series circuit and obtain resonant frequency. |
| 4. Design and find cut-off frequency of low pass and high pass filters. |
| 5. Design and find the pass band frequencies of band pass filters. |

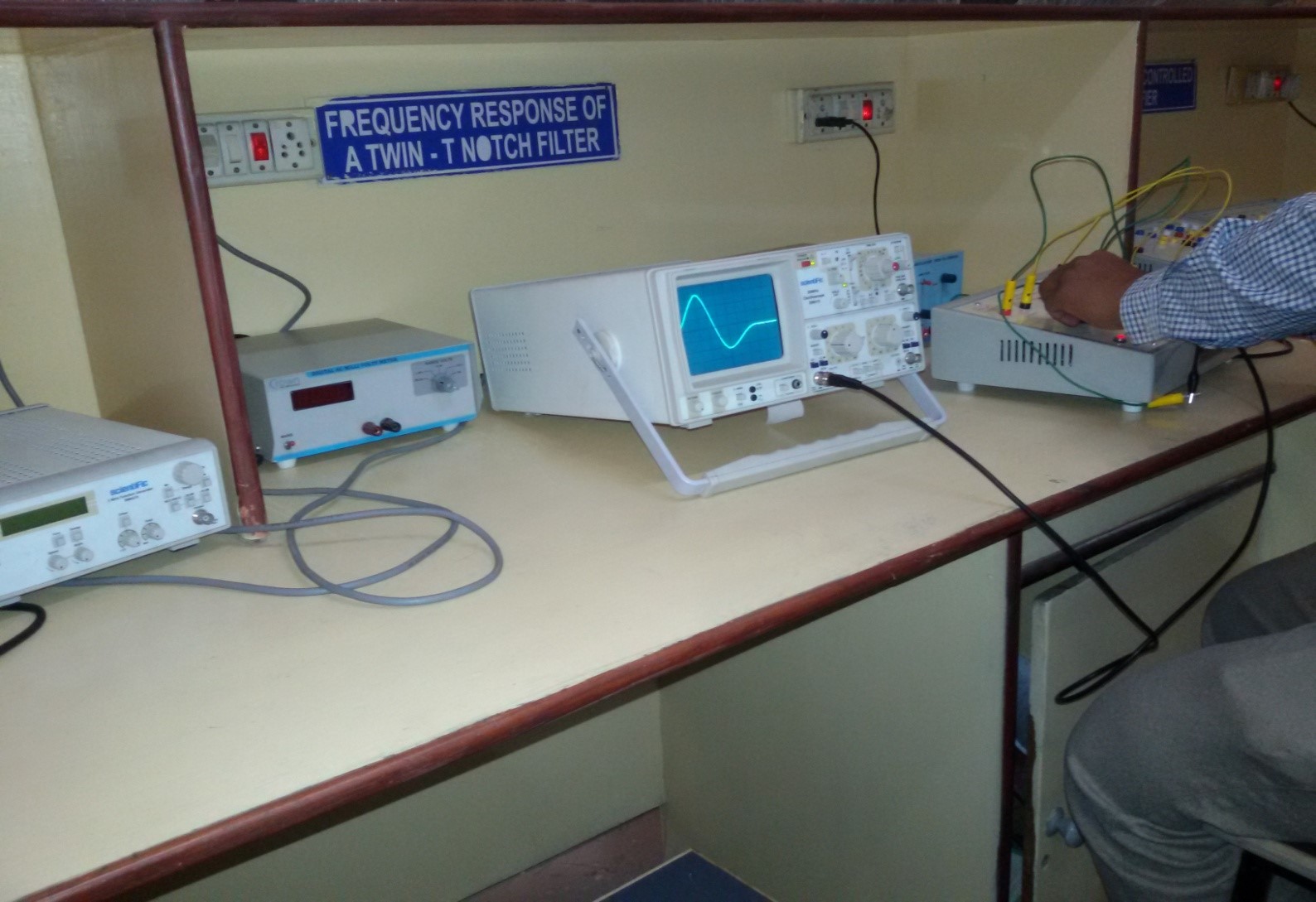

| 6. Design and find the stop band frequencies of band reject filters. |
| 7. Determination of two port network Z and h parameters. |
| 8. Verification of parameters properties in interconnection of 2, two port networks in series-series interconnection. |
| 9. Verification of parameters properties in interconnection of 2, two port networks in parallel-parallel interconnection. |
| 10. Determination of Z parameters of a T network and Computation of corresponding parameters to equivalent π network. |
| 11. To perform the transient response of RL circuit. |
| 12. Verification of parameters properties in interconnection of 2, two port networks in cascade interconnection. |
| ELECTRICAL MACHINES-I LAB |
|---|
| 1. To obtain magnetization characteristics of a DC shunt generator. |
| 2. To obtain load characteristics of a DC shunt generator andcompound generator (a) Cumulatively compounded (b) Differentially compounded. |
| 3. To obtain efficiency of a DC shunt machine using Swinburne’s test. |
| 4. To perform Hopkinson’s test and determine losses and efficiency of DC machine. |
| 5. To obtain speed- torque characteristics of a DC shunt motor. |
| 6. To obtain speed control of DC shunt motor using (a) armature resistance control (b) field control. |
| 7. To obtain speed control of DC separately excited motor using Ward-Leonard. |
| 8. To obtain equivalent circuit, efficiency and voltage regulation of a single-phase transformer using O.C. and S.C. tests. |
| 9. To obtain efficiency and voltage regulation of a single-phase transformer by Sumpner’s test. |
| 10. To obtain 3-phase to2-phase conversion by Scott connection. |
| 11. To demonstrate the parallel operation of three phase transformer and to obtain the load sharing at a load. |
| CONTROL SYSTEM LABORATORY |
|---|
| 1. To determine speed-torque characteristics of an AC servomotor. |
| 2. To study i) Synchro Transmitter characteristics. ii) Obtain Synchro Transmitter – Receiver output vs input characteristics. |
| 3. To determine response of first order and second order systems for step input for various values of constant ’K’ using linear simulator unit and compare theoretical and practical results. |
| 4. To study characteristics of positional error detector by angular displacement of two servo potentiometers. |
| 5. To simulate and compare the response of 2nd order system with and without lead, lag, Lead- Lag compensator / simulate PID controller for transportation lag. |
| 6. To study P, PI and PID temperature controller for an oven and compare their characteristics. |
| 7. To study performance of servo voltage stabilizer at various loads using load bank. |
| 8. To study behavior of separately excited dc motor in open loop and closed loop conditions at various loads. |
| ELECTRICAL MACHINE-II LAB |
|---|
| 1. To perform no load and blocked rotor tests on a three phase squirrel cage induction motor and determine equivalent circuit. |
| 2. To perform load test on a three phase induction motor and draw Torque -speed characteristics. |
| 3. To perform no load and blocked rotor tests on a single phase induction motor and determine equivalent circuit. |
| 4. To study speed control of three phase induction motor by varying supply voltage and by keeping V/f ratio constant. |
| 5. To perform open circuit and short circuit tests on a three phase alternator. |
| 6. To determine V-curves and inverted V-curves of a three phase synchronous motor. |
| 7. To determine the direct axis reactance (Xd) and quadrature axis reactance (Xq) of synchronous machine. |
| 8. To study synchronization of an alternator with the infinite bus by using: (i) dark lamp method (ii) two bright and one dark lamp method. |
| 9. To determine speed-torque characteristics of three phase slip ring induction motor and study the effect of including resistance, or capacitance in the rotor circuit. |
| 10. To determine speed-torque characteristics of single phase induction motor and study the effect of voltage variation. |
| 11. To determine speed-torque characteristics of a three phase induction motor by (i) keeping v/f ratio constant (ii) increasing frequency at the rated voltage. |
| 12. To draw O.C. and S.C. characteristics of a three phase alternator from the experimental data and determine voltage regulation at full load, and unity, 0.8 lagging and leading power factors. |
| 13. To determine steady state performance of a three phase induction motor using equivalent circuit. Load Test on Three Phase Alternator. |
| POWER SYSTEM LAB-II |
|---|
| 1. To determine fault current for L-G, L-L, L-L-G and L-L-L faults at the terminals of an alternator at very low excitation. |
| 2. To Study the over-current relay and the effect of PSM and TSM. |
| 3. To study percentage differential relay. |
| 4. To study Impedance, MHO and Reactance type distance relays and zones of protection. |
| 5. To study Ferranti effect of a transmission line/cable. |
| 6. To measure the dielectric Strength of transformer oil. |
| 7. To study the Synchronization of alternator with infinite bus bar. |
| 8. To determine positive sequence, negative sequence and zero sequence reactance of an alternator. |
| 9. To Study the effect of different shape of electrodes on dielectric (air) breakdown. |
| 10. To Study the gas actuated Buchholz relay for oil filled transformer. |
| 11. To determine the sub-transient (xd″), transient (xd′) and steady state reactance (xd) of a synchronous machine. |
| POWER ELECTRONICS LAB |
|---|
| 1. To study triggering of (i) IGBT (ii) MOSFET (iii) power transistor. |
| 2. To study V-I characteristics of SCR and measure latching and holding currents. |
| 3. To compare the R, RC & UJT trigger circuit for SCR. |
| 4. To study the commutation circuit for SCR. |
| 5. To study single phase fully controlled bridge rectifiers with resistive and inductive loads. |
| 6. To study single phase fully controlled bridge rectifiers with DC motor load. |
| 7. To study three-phase fully controlled bridge rectifier with resistive and inductive loads. |
| 8. To study single-phase ac voltage regulator with resistive and inductive loads. |

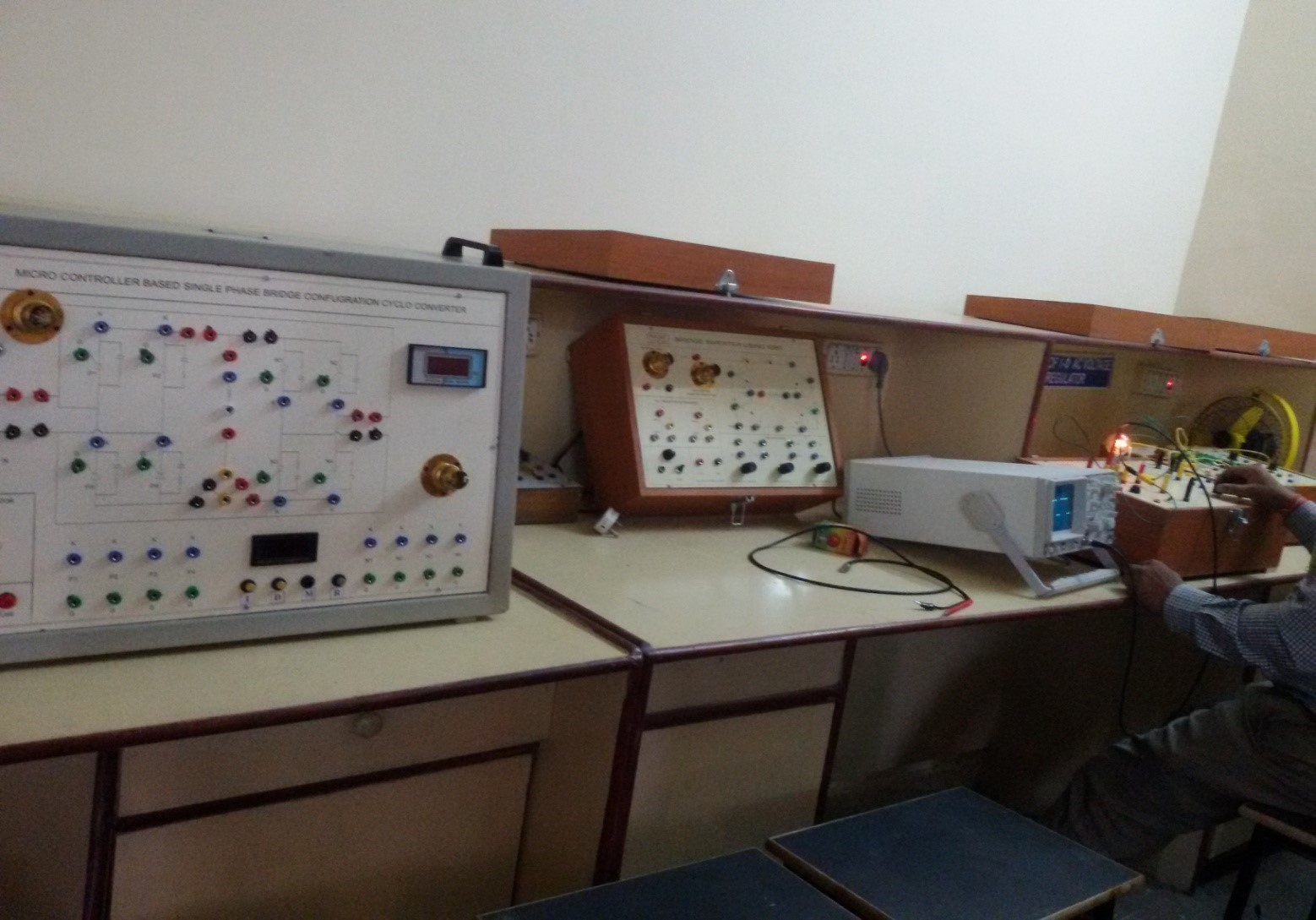

| 9. To study single phase cyclo-converter |
| 10. To study the four quadrant operation of chopper circuit |
| 11. To study MOSFET/IGBT based single-phase bridge inverter. |
| INDUSTRIAL AUTOMATION & PLC LAB |
|---|
| A) Industrial Automation: |
| 1. Study hardware and software platforms for DCS. |
| 2. Simulate analog and digital function blocks. |
| 3. Study, understand and perform experiments on timers and counters. |
| 4. Logic implementation for traffic Control Application. |
| 5. Logic implementation for Bottle Filling Application. |
| 6. Tune PID controller for heat exchanger using DCS. |
| 7. FBD for auto-clavable laboratory fermenter. |
| 8. Develop graphical user interface for the fermenter plant |
| B) PLC : |
| 1. Study hardware and software used in PLC. |
| 2. Implementation Logic Gates. |
| 3. Implementation of DOL Starter. |
| 4. Implementation of On-Delay Timer. |
| 5. Implementation of Off-Delay Timer. |
| 6. Implementation of Up-Down Counter. |
| 7. Implementation of PLC Arithmetic Instructions. |
| 8. Implementation of PID Controller |
